Chainway Handheld Reader C72

50000 INR/Piece

Get a Price/Quote

Product Details:

Product Type UHF RFID Handheld Reader
Material abs
Usage RFID Tag scanning.
Dimension (L*W*H) 164.2 x 80.0 x 24.3 Millimeter (mm)
Weight 654 Grams (g)
Warranty 1 year
Color Black
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Chainway Handheld Reader C72 Price And Quantity

Price 50000 INR/Piece
Minimum Order Quantity 1 Piece

Chainway Handheld Reader C72 Product Specifications

Warranty 1 year
Usage RFID Tag scanning.
Color Black
Camera Size 13MP
Power Supply Yes
Input Power 9-12 Volt (V)
Frequency 865-868 Megahertz (MHZ)
Product Type UHF RFID Handheld Reader
Remote Control No
Dimension (L*W*H) 164.2 x 80.0 x 24.3 Millimeter (mm)
Material abs
Weight 654 Grams (g)

Chainway Handheld Reader C72 Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 100 Piece Per Day
Delivery Time 1 Days
Sample Policy Contact us for information regarding our sample policy
Packaging Details 164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in.
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa
Main Domestic Market All India
Certifications All

Product Description

Chainway C72 is an Android rugged RFID reader that boasts best-in-class UHF RFID capability. Built with embedded Impinj E710 and supports Impinj Gen2X, it enables more than 30m read distance and more excellent performance. The RFID reader features optional barcode scanning, Octa-Core processor and 8000mAh powerful battery to perfectly meet demands in intensive applications, especially in asset management, retail, warehousing, apparel inventory, expressway toll, fleet management, finance, etc.

Industry-leading RFID Performance

Features

Best-Selling Handheld RFID Reader	High-Performance Octa-Core 2.3GHz
8000mAh Battery	IP67 & 1.5m / 5ft. Drop

Functions

Self-Developed UHF Module Based on Impinj E510

Impinj Gen2X for Enhanced UHF Performance

1300+ Tags/s Read Rate

30m+ / 100ft.+ Read Range

Barcode, NFC, and More

SPECIFICATIONS

Physical Characteristics
Dimensions	164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in.
Weight	654 g / 23.07 oz.
Display	5.2'' IPS LTPS 1920 x 1080
Touch Panel	Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power	Main battery: Li-ion, rechargeable, 8000 mAh Standby: over 500 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable)
Notification	Sound, LED indicator
Expansion Slot	1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Interfaces	USB 2.0 Type-C, OTG, Type-C headphones supported
Audio	1 microphoneï¼›1 speakerï¼›receiver
Keypad	4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors	Light sensor, proximity sensor, gravity sensor

Communication
WLAN	IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN	2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMAï¼šB1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 TD-SCDMAï¼šA/F 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A B28B/B34/B38/B39/B40/B41
WWAN (Others)	Depending on the country's ISP
Bluetooth	Bluetooth 5.0
GNSS	GPS/AGPS, GLONASS, BeiDou; internal antenna
Note	*C72 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.

Developing Environment

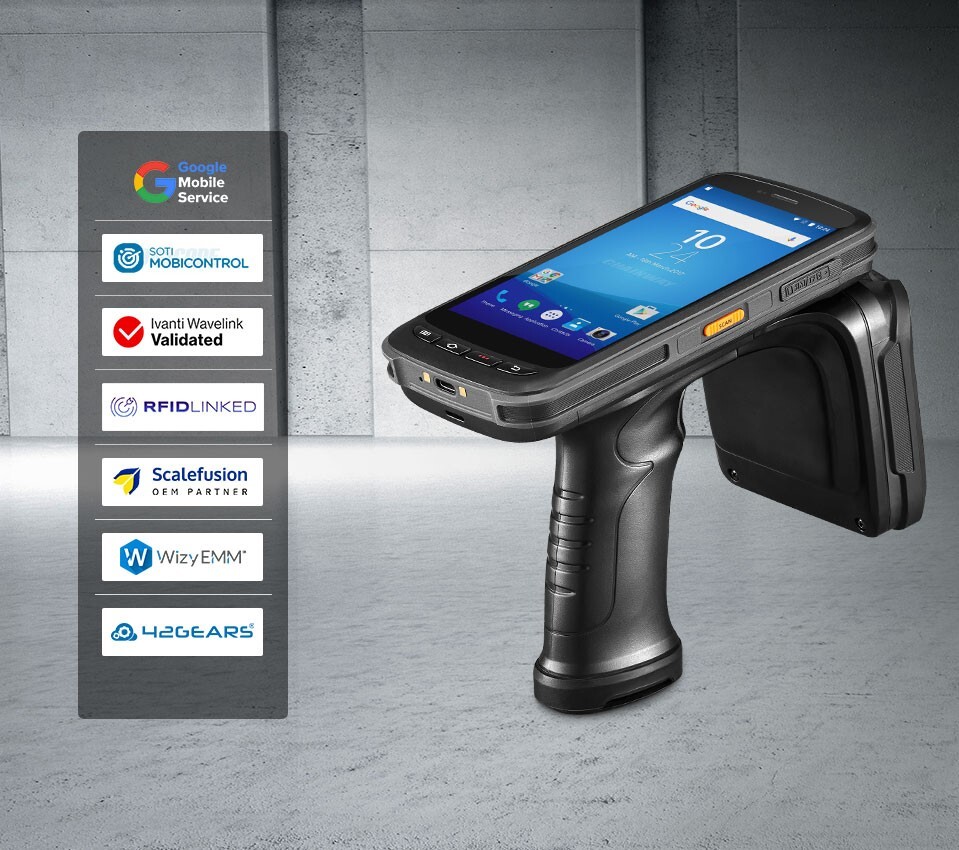

Operating System	Android 11/13; GMS, 90-day security updates, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported.
SDK	Chainway Software Development Kit
Language	Java
Tool	Eclipse / Android Studio

Performance
CPU	Octa-core, 2.3GHz
RAM+ROM	3GB + 32GB / 4GB + 64GB (optional)
Expansion	Supports up to 256GB Micro SD (TF) card

User Environment

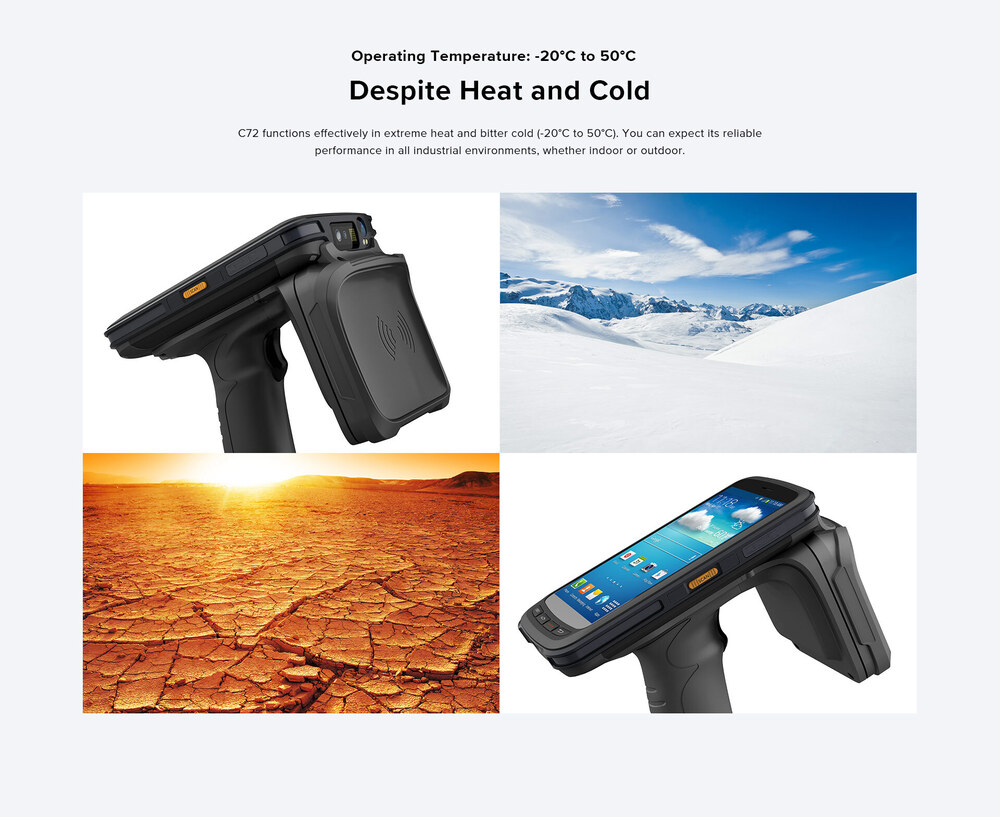

Operating Temp.	4 F to 122 F / -20 C to 50 C
Storage Temp.	-40 F to 158 F / -40 C to 70 C
Humidity	5% RH - 95% RH non condensing
Drop Specification	Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range
Tumble Specification	1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing	Host IP65 per IEC sealing specifications
ESD	ï15 KV air discharge, ï6 KV conductive discharge

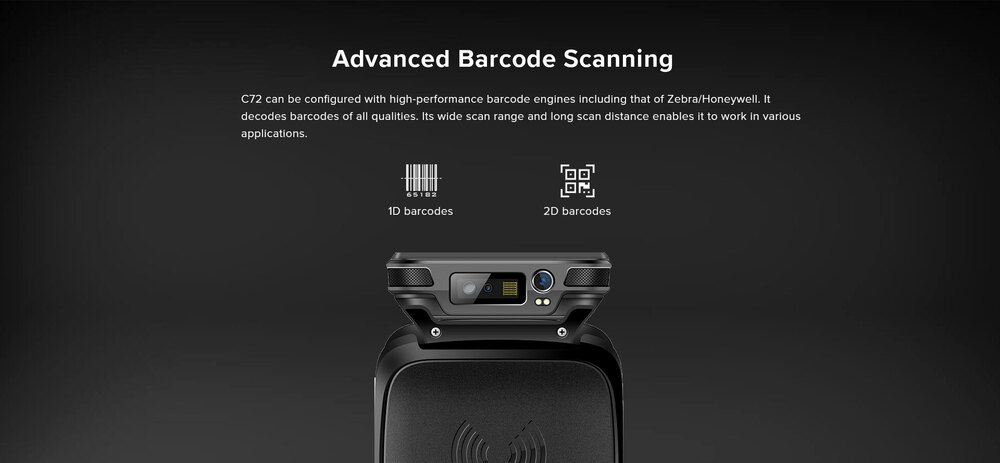

Barcode Scanning
1D Linear Scanner	Honeywell: N4313
2D Imager Scanner	Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP; Honeywell: N6603; CM60
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note	*This function is optional

UHF RFID
Engine	CM710-1 module based on Impinj E710
Frequency	865-868 MHz / 920-925 MHz / 902-928 MHz
Impinj Gen2X	Supported
Protocol	EPC C1 GEN2 / ISO18000-6C, supports GS1 EPC Gen2v2 Authenticate and ISO/IEC 29167-11

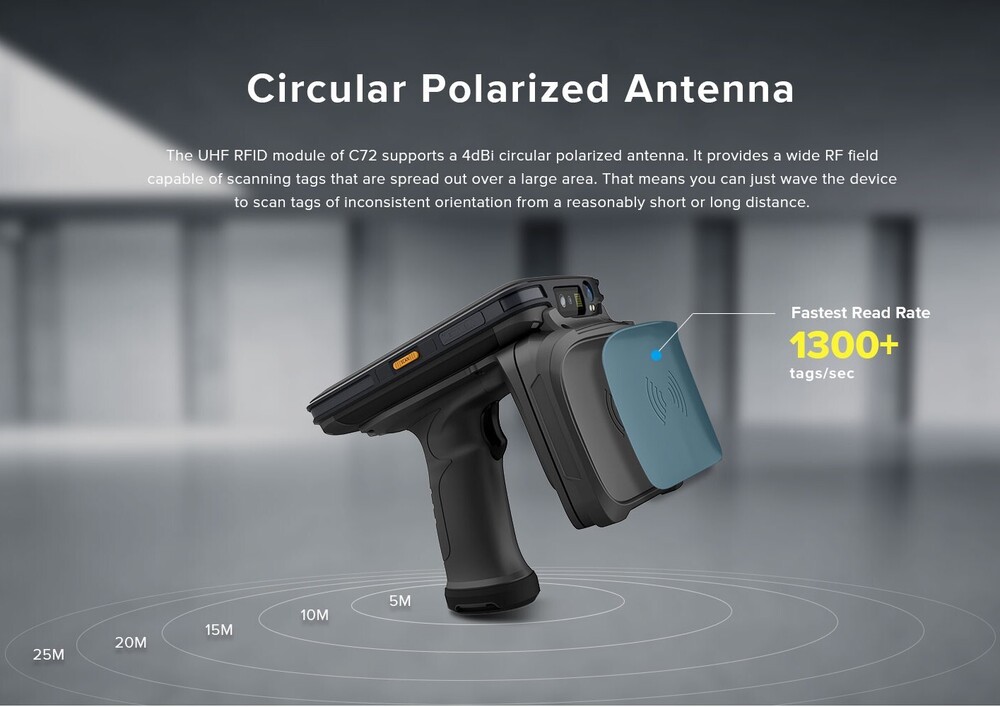

Antenna	circular polarization (4 dBi)
Power	1W (30 dBm, +5 dBm to +30 dBm adjustable) 2W Optional (33 dBm, for Latin America, etc.)
Fastest Read Rate	1300+ tags/sec (circular polarization)
Max Read Range	26m (Impinj MR6 tag, size 70 x 15mm) 28m (Impinj M750 tag, size 70 x 15mm) 30m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Note	*Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
Note2	*This function is optional

Camera
Camera	13 MP Autofocus with flash

NFC
Frequency	13.56 MHz
Protocol	ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips	M1 card (S50, S70), CPU card, NFC tags, etc.
Range	2-4 cm
Note	*This function is optional
